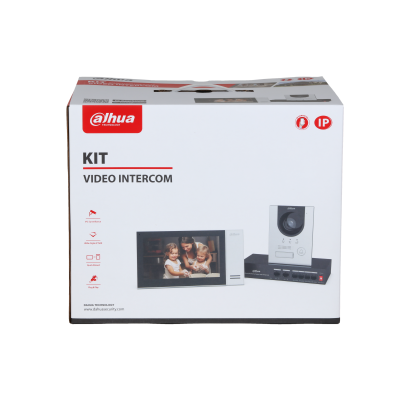

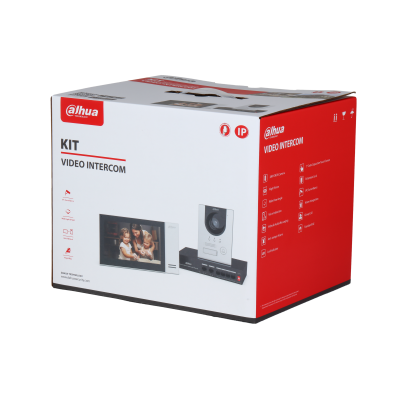

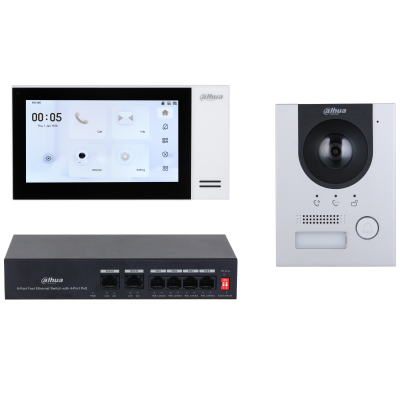

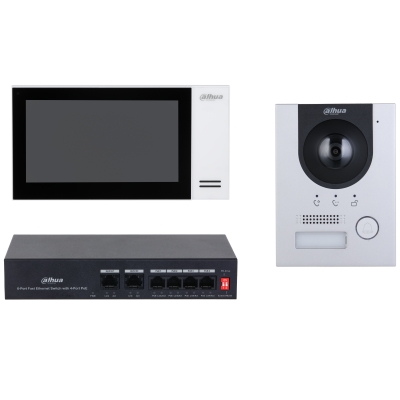

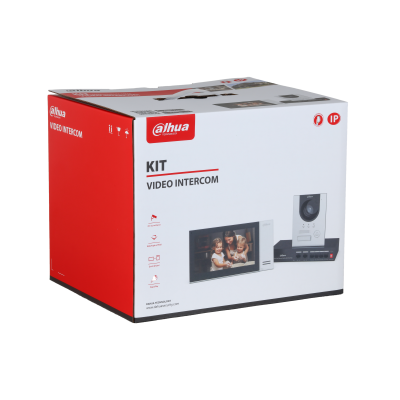

Dahua KTP01L Video Intercom KIT IP Villa Door Station

$423.00 inc GST +3 Year Warranty & Support
A$423.00
  •  Anodized aluminum front panel.
  • CMOS low illumination 2MP HD colorful 168.6°camera.
  • Video intercom function.
  • Provides 12 VDC, 600 mA power.
  • Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
  • IK07 and IP65 rated (silicone sealant is required for the shell, see the quick start guide).
  • Support H.265 and H.264.
  • Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).



  • IP Indoor Monitor
  • 7" TFT Capacitive touchscreen, 1024 × 600.
  • IPC surveillance.
  • Alarm integration.
  • High performance and cost-effective.
  • Supports 8 GB SD card.
  • Supports standard PoE.

System(VTO)

  • Main Processor:            Embedded Processor
  • Operating System:       Embedded Linux Operation System
  • Button Type:                 Mechanical
  • Interoperability:          ONVIF; CGI
  • Network Protocol:      SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4

Basic(VTO)

  •  Camera:     1/2.9" 2 MP CMOS
  • Field of View:      H: 168.6°; V: 87.1°; D: 176.7°
  • WDR:                120 dB
  • Noise Reduction:      3D NR
  • Video Compression:    H.265; H.264
  • Video Resolution:  Main stream: 720p; WVGA; D1; CIF
  •                                  Sub stream: 1080p; WVGA; D1; QVGA; CIF
  • Video Frame Rate:        25 fps
  • Video Bit Rate:           256 kbps to 8 Mbps
  • Light Compensation:     Auto IR
  • Day/Night:                     Auto(ICR)/Color/B/W; Color/B/W
  • Audio Compression:    G.711a; G.711u; PCM
  • Audio Input:           1 channel
  • Audio Output:         Built-in speaker
  • Audio Mode:        Two-way audio
  • Audio Enhancement:  Echo suppression/digital noise reduction
  • Audio Bit Rate:      16 kHz, 16 bits

Function(VTO)

  • Communication Mode:   Full digital
  • Unlock Mode:        Remote
  • Leave Videos:        Yes (SD card is inserted in the indoor monitor or door station)
  • Storage:              Supports Micro SD card (up to 256 GB)
  • Web Configuration:      Yes



Performance(VTO)

 Casing Material:           Aluminum

 Port(VTO)

  •  RS-485:    1
  • Alarm Output:     1
  • Power Output:    1 port (12 V, 600 mA)
  • Exit Button:     1
  • Door Status Detection:   1
  • Lock Control:        1
  • Network Port:       1 × RJ-45 port, 10/100 Mbps network port

Alarm(VTO)

  • Tamper Alarm:         Yes

General (VTO)

  • Appearance Color: Silver
  • Power Supply: 48 VDC, 0.4 A; PoE (802.3af/at)
  • Power Adapter: Optional
  • Installation: Surface mount (The surface mount kit comes with the surface mount bracket)
  • Certifications: CE
  • Product Dimensions: 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
  • Protection: IK08, IP65 (Silicone sealant is needed, see the quick start guide)
  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140°F)
  • Operating Humidity: 10%–95% (RH), non-condensing
  • Operating Altitude: Beneath 3000 m (9842.52 ft)
  • Operating Environment: Outdoor
  • Power Consumption: ≤5 W (standby), ≤7 W (working)
  • Gross Weight: 692 g (1.53 lb)
  • Storage Humidity: 30%–75% (RH)
  • Storage Temperature: 0 °C to +40 °C (+32 °F to +104 °F)

System (VTH)

  • Main Processor: Embedded Processor
  • Operating System: Embedded Linux Operating System

Basic (VTH)

  • Screen Type: Capacitive Touchscreen
  • Display Screen: 7" TFT
  • Screen Resolution: 1024 (H) × 600 (V)
  • Audio Compression: G.711a; G.711u; PCM
  • Audio Input: 1-channel all-direction microphone
  • Audio Output: Built-in 1.5 W loudspeaker
  • Audio Mode: Two-way audio
  • Audio Enhancement: Echo suppression/digital noise reduction
  • Audio Bit Rate: 16 kbps

Function (VTH)

  • Communication Mode: Full digital
  • Information Release: Supports receiving and viewing notifications issued by the center
  • Leave Videos: Yes
  • DND Mode: Do not disturb period can be set
  • Number of Extensions: 9
  • Storage: Embedded 8 GB card

Port (VTH)

  • Alarm Input: 6 channels (switch quantity)
  • Alarm Output: 1 channel
  • Network Port: 1 × RJ-45 port

Alarm (VTH)

  • SOS Alarm: Yes

Performance (VTH)

  • Casing Material: PC + ABS

General (VTH)

  • Appearance Color: Black
  • Power Supply: 12 VDC, 1 A, PoE
  • Installation: Surface Mount
  • Certifications: CE; FCC; UL
  • Accessory: Default bracket, Default alarm cable
  • Product Dimensions: 119.6 mm × 221.5 mm × 23.5 mm (4.71" × 8.72" × 0.93")
  • Operating Temperature: -10°C to +55°C (+14°F to +131°F)
  • Operating Humidity: 10%-95% (RH), non-condensing
  • Operating Altitude: 0 m–3,000 m (0 ft–9,842.52 ft)
  • Operating Environment: Indoor
  • Power Consumption: ≤4 W (standby), ≤6 W (working)
  • Gross Weight: 0.35 kg (0.77 lb)
  • Storage Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
  • Storage Humidity: 30%–75% (RH), non-condensing

System (Networking Device)

  • Main Processor: Embedded Processor

Port (Networking Device)

  • Network Port:     4 × PoE ports with 10/100 Mbps Base-TX
                                 2 × uplink ports with 10/100 Mbps Base-TX

General (Networking Device)

  • Appearance Color: Black
  • Power Supply: Built-in power supply: 100–240 VAC
  • Certifications: CE; FCC
  • Product Dimensions: 194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38")
  • Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
  • Operating Humidity: 10%–90% (RH), non-condensing
  • Power Consumption: Idling: 0.5 W; Full load: 36 W
  • Gross Weight: 1.11 kg (2.15 lb)

Complete Documentation and Specification Details Manual
